Background#

First windows now it’s time for the penguin! Unlike windows, Linux has a more direct approach for doing things like manipulating memory or linking libraries or you don’t need to call 3+ API functions to do something like process injection.

Fundamentals#

Memory#

Everyone knows things like RAM but what about the other memory in the system?

Primary#

  • Your RAM and ROM (read only memory)
  • Disposable/wiped after a reboot.
  • Fast readily available for programs

ROM#

  • Read only.
  • BIOS level.
  • Smaller chip.
  • Provides all boot instructions and firmware.

Register memory#

  • storage locations on the CPU that store temporary data.
  • Faster than RAM.
  • Important instructions
  • each register typically holds between 32 and 64 bits of data.
  • THIS IS NOT CACHE MEMORY!!
Data Register#
  • 16 bit register that holds variables.
  • Temporary holding place for data.
Program Counter Register (PC Register)#
  • Memory address for next set of instructions in the program.
  • Keeps proper sequence in the program.
Instruction Register#
  • 16 bit register that contains the current instruction code from the main memory (RAM).
  • This is what the CPU actually executes.
Address Register#
  • 12 bit register for address location.
  • CPU fetches and handles instructions from this.
I/O Address Register#
  • unique address with an input or output device like a keyboard or audio.
  • CPU uses this to interact with other devices.
I/O Buffer Register#
  • temporary buffer for the I/O Address Register to exchange and hold data.
  • Deals with before and after processing.

Cache Memory#

  • Fast but small.
  • Typically old memory.
  • CPU checks the cache first (a cache hit) before reading the RAM (a cache miss if not in cache).
L1 (Level 1 Cache)#
  • First level in the CPU.
  • Ranges from 2KB to 64KB in size.
  • Every core has this.
L2 (Level 2 Cache)#
  • Might not be present in the CPU.
  • 2 cores may share it.
  • 256KB to 512KB in size.
L3 (Level 3 Cache)#
  • Shared by all cores and present outside of the CPU.
  • Ranges from 1MB to 8MB in size.

Secondary#

  • Optical Disks
  • Flash memory
  • Slower than primary
  • Persistent

Sources#

Assembly#

Just kidding lol, I won’t have notes on assembly, resources bellow already did it.

Sources#

Memory Management in Linux#

Virtual Memory#

  • A technique that allows for Linux to use more memory than physically available.
  • Uses disk storage as an extension.
  • Allows for multitasking and memory isolation between processes.

Virtual address space#

  • text segment: contains actual code for a program.
  • Data segment: stores variables.
  • Heap: dynamically allocated memory region that can grow.
  • Stack: all function call frames, local variables, and control flow data. The flow of the virtual address space goes downwards meaning the stack interacts with the heap then data, then code.

Sources#

Process Injection#

Background and important#

In Linux there’s no possible way to allocate more memory to a process meaning if the original process isn’t restored it’ll crash.

System Calls and Methods#

  • ptrace: debugs a remote process meaning memory on that process can be changed and inspected.
  • procfs: a filesystem that shows the interfaces for running processes (literally in /proc on Linux).
    • Processes are typically directories represented by their PIDs.
    • Inside of the PIDs is the mem file that shows the memory address and space for that process.
  • process_vm_writev: allows for modifying data space of the remote process.
    • This syscall receives a pointer and copies it to the specified location in the remote process.

The Elephant In The Room#

All this is neat and all but how do things like the ps command get all of the processes and memory in Linux? Well it actually reads them from the /proc directory on the Linux filesystem!

Sources#

Function Hooking#

Background and important#

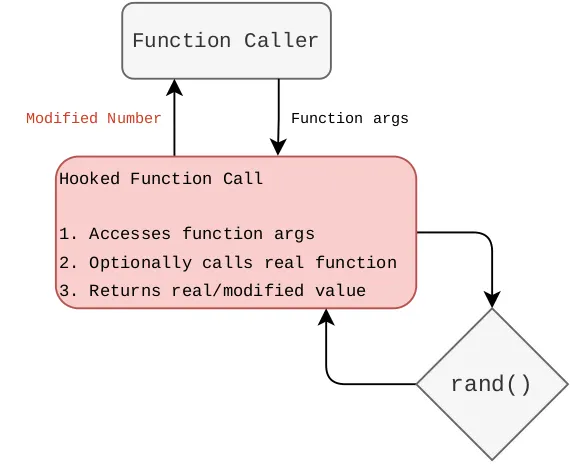

In Linux you can redirect, intercept and alter function calls at run time for an app like setting a fixed number instead of a random one when calling rand from libc. Bellow is a digram from infosecwriteups.com on how function hooking works. diagram (source of image is in sources)

Methods#

  • LD_PRELOAD environment variable: this variable is loading libraries before executing a program.
