Summary#

My notes while learning malware development for Windows.

Note For The Reader:#

These are NOT up to date “how to build super haxxor l33t 1337 malware notes/tutorials” these are simply notes on the fundamentals/references. Maybe in the future modern malware techniques will be added. Things evolve too fast for consistent notes and same with evasion techniques so don’t expect these notes to be super up to date.

Malware types#

Notes:#

• Sophisticated malware will be able to detect tools trying to analyze it by checking processes running or if it’s in a virtual machine.

RAT#

• persistent connection to a machine to monitor things like key strokes.

Infostealers#

• targets sensitive information like medical records or banking information

Droppers and loaders#

• Deploy additional malware through a web request.

Ransomware#

• Denies access to a person’s computer for a ransom.

Wipers#

• Destroys sensitive information or entire systems.

Worms#

• Self spreading malware.

Viruses#

• Adds malicious code onto a host system’s files.

Rootkits and Bootkits#

• Malware that conceals itself in the kernel or in the BIOS. Rootkits run at system startup while Bootkits start at boot time.

Trojans#

• Pretends to be legit programs to infect a system.

Windows 101#

Concepts/Essentials#

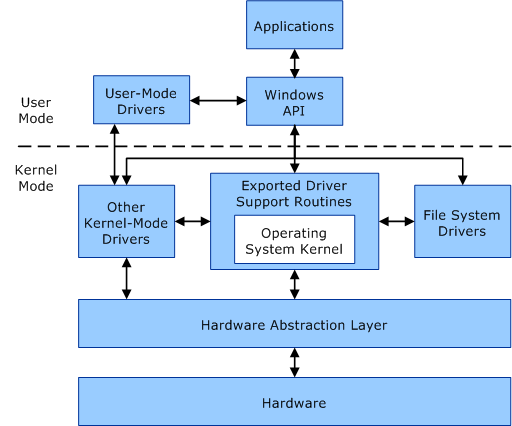

User mode vs Kernel mode#

Windows API/WinAPI#

• various functions for programs to interact with to function

Drivers#

• Provide an abstraction layer between the actual kernel and user (kernel level anti cheats are drivers)
• Drivers can be ran in user mode or Kernel mode
• Kernel mode have FULL access to the kernel
• User mode drivers are restricted

Hardware abstraction Layer#

• Interface for hardware to interact with the rest of the system.

Kernel#

• Kernel is the “magic” of this system by having the utilities for everything to communicate and run (somewhat) effectively by handling memory management and other complex tasks.

Processes and Threads#

• Processes are applications
• Threads are instructions for that process (processes can have more than one thread)

Objects and Handles#

• Objects are resources like resources (files, tokens, another process, or thread)
• Handles are identifiers for those processes or objects a program is trying to access
• Mutexe (Mutual exclusions) control access to objects to prevent system crashes or other issues.

Windows API#

• WinAPI is a library of various functions
• API helps with things from security authentication to even showing a message box
• Docs are notoriously bad

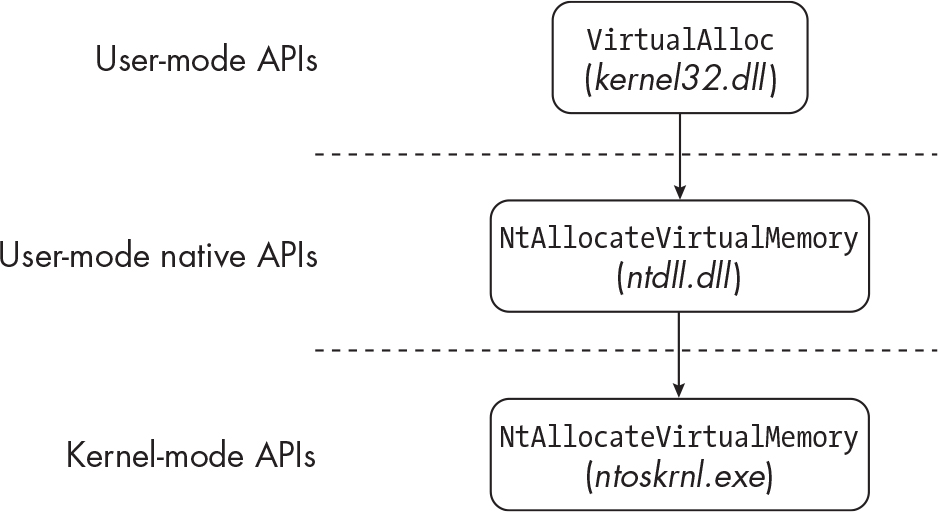

Windows Native API#

• a lower level windows API
• undocumented by MS http://undocumented.ntinternals.net/ https://www.geoffchappell.com/studies/windows/win32/ntdll/api/native.htm

API Functions:#

Notes#

• API functions have various suffixes.
  • Ex means newer
  • A outputs and inputs in ANSI format (https://ansi.tools/)
  • W outputs and inputs in unicode format (https://gist.github.com/jpassaro/bf400b0410810a071a7fb3509ef6c2c3)
• Native API functions have prefixes. https://stackoverflow.com/questions/4770553/windows-native-api-when-and-why-use-zw-vs-nt-prefixed-api-calls#4770583
  • Zw are for kernel mode drivers
  • Nt are for user mode applications
• DLLs are libraries that contain these functions
  • kernel32.dll
    • Contains fundamental user mode functions
  • user32.dll
    • For gui applications
  • Winhttp.dll
    • For internet functions for windows programs
  • ntdll.dll
    • Synchronization, threading and other system tasks that communicate with the kernel
  • kernelbase.dll
    • For backwards compatibility for windows apps

Process Internals#

Processes point to additional data structures. It provides additional information for windows to understand and manage processes

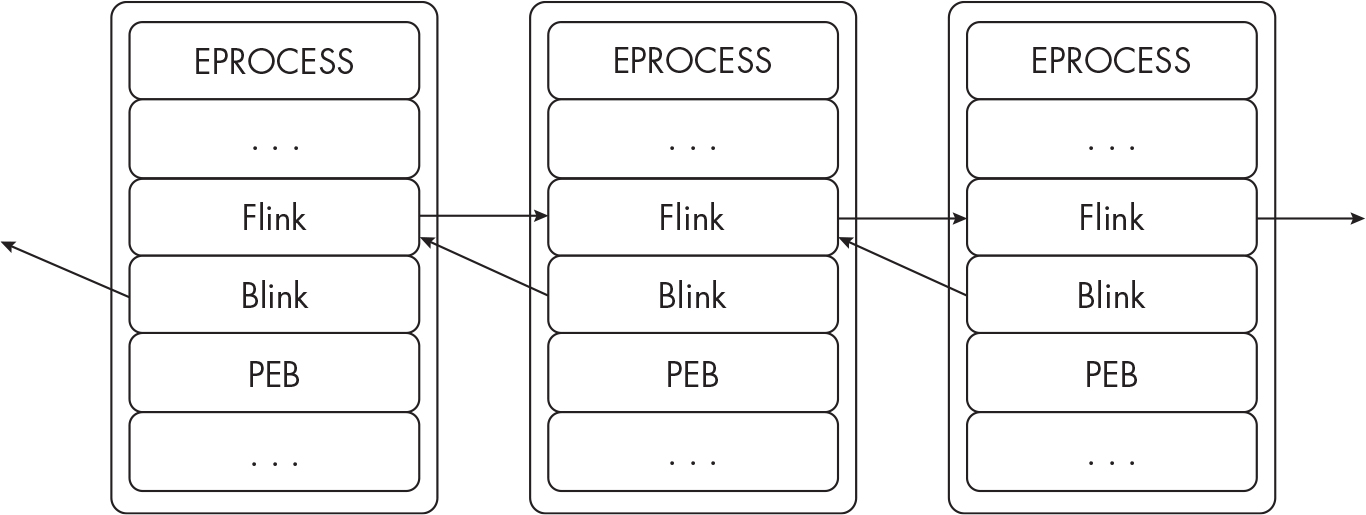

EPROCESS Structure#

• This is how windows processes are understood by the kernel.
• EPROCESS structures:
  • PEB (process environment block)
    • contains essential information for the process
  • Forward Links (Flink)
    • chains to the Blink
  • Backward Links (Blink)
    • links backwards to the Flink
  • Links just link processes

PEB Structure Offsets and Data#

TEB (Thread Environment Block aka TIB Thread Information Block)#

• Contains Information for process’s running threads

Stacks and Heaps#

• Stack is where temporary data is stored (destroyed after a thread is done)
• Heap is a large region used to dynamically store memory at runtime (global variables, etc.)

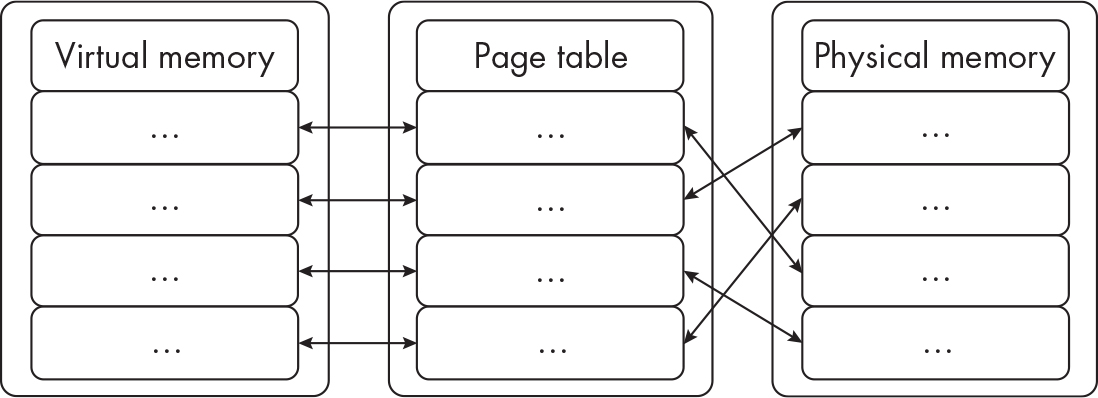

Virtual Memory#

• In windows processes have virtual memory allocated to them that are mapped to the RAM
• Solves process interference or programs crashing
• If a process has too little RAM for a process it’ll page/store it on disk (like a Linux swapfile or partition)

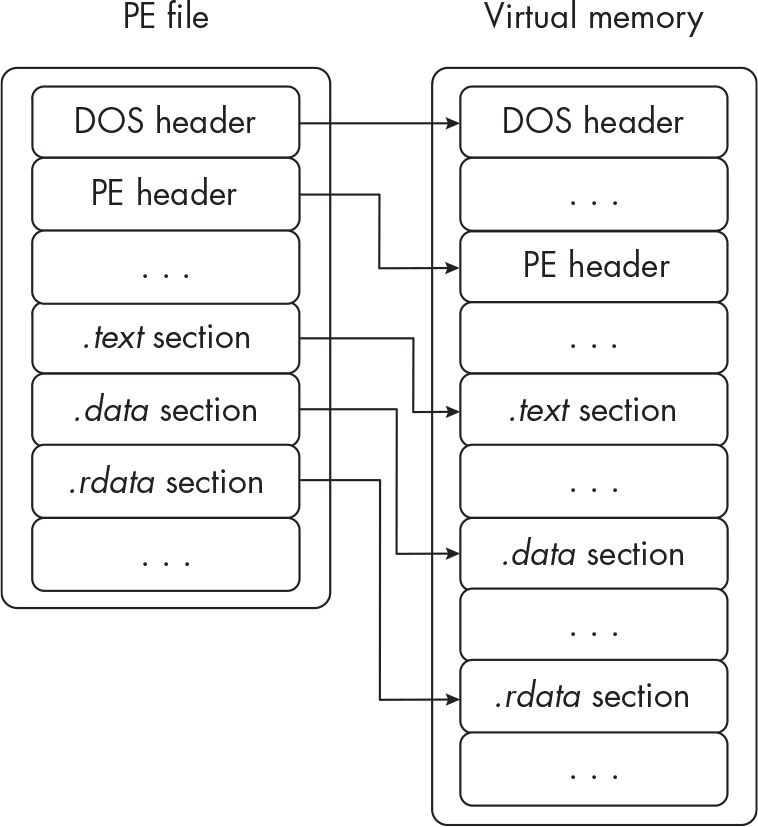

PE Files#

• Essentially the windows version of elf files
• Contain headers and sections
  • Headers are metadata
  • DOS Headers are for older versions of windows
  • PE header contains information used by the Windows PE Loader
  • Section header contains metadata related to file sections (size, address, etc.)
  • Common sections in table bellow

PE Loading Process#

1. Windows makes a new EPROCESS structure
2. Windows allocates virtual memory to the process
3. PE Loader reads and parses the DOS, PE, and optional headers
4. PE Parses all the other headers
5. Loads libraries associated with the PE (.idata and or .rdata)
6. New thread is created inside the process (.text section)

Address Space Layout Randomization (ASLR)#

• prevents memory corruption

Registry#

• A database that applications and the OS reads and stores configurations

Hives#

1. HKEY_LOCAL_MACHINE (HKLM)
   • Low level OS
   • Hardware configurations
   • Security Policies
   • Account settings
   • Settings for software installed
   • SAM database
   • LSA Secrets
2. HKEY_CURRENT_USER (HKCU)
   • user and system configurations
3. HKEY_USERS (HKU)
   • User settings
   • Stores the information for every user on the system
   • Sub keys represent identifiers of every user
4. HKEY_CURRENT_CONFIG (HKCC)
   • Pointers to the HKLM key for hardware profiles
5. HKEY_CLASSES_ROOT (HKCR)
   • registered application information like default apps to open files

Evasion techniques#

Process Injection#

• Injecting code into another process
• Mimics normal behavior like injecting into a web browser to communicate with a C2 server
• prevents debugging
• privilege escalation, certain processes can elevate privileges

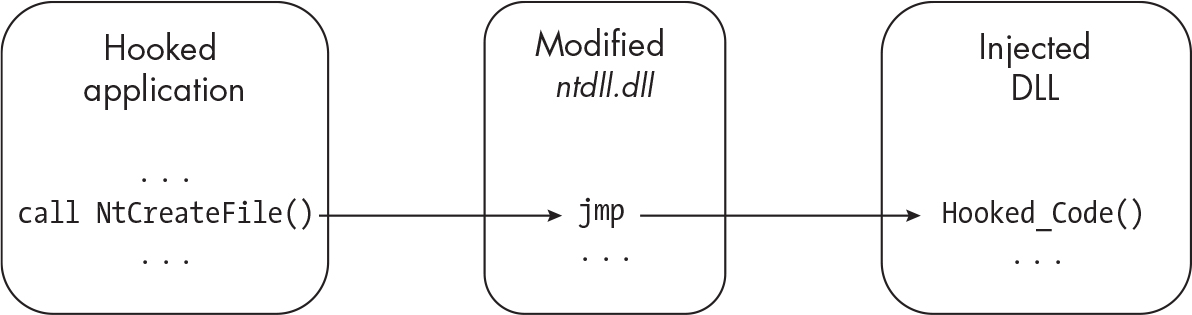

• intercepting data from a hook, this allows for modifying API calls or getting sensitive data.

Random vs Target Process#

• Depending on injecting into a specific process or a random one is goals.
• Targeting specific processes can help with evasion while random ones can trip defenses
• Self-injecting is injecting into its own process, typically during unpacking.

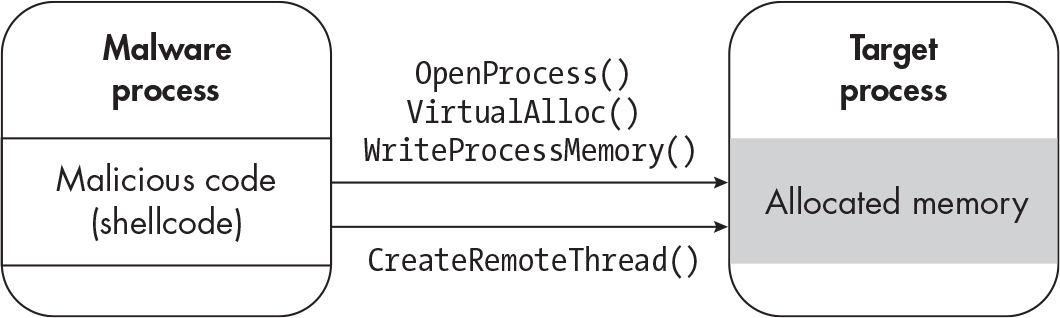

Shellcode Injection#

• shellcode injection happens by injecting shell code into a process.

1. call OpenProcess/NtOpenProcess to open a process and specify the proper options
2. After getting the object handle run either VirtualAlloc, VirtualAllocEx, or NtAllocateVirtualMemory to allocate enough memory for your shellcode.
3. Write the memory to the process with WriteProcessMemory or NtWriteVirtualMemory
4. Call CreateRemoteThread, NtCreateThreadEx or RtlCreateUserThread and input the proper options.

Example:#

// src/main.zig
const std = @import("std"); // standard library
const processThreadsAPI = @cImport({
    @cInclude("processthreadsapi.h"); // import windows libraries
    });
const memoryAPI = @cImport({
    @cInclude("memoryapi.h"); // import windows libraries
});
const win = @cImport({
    @cInclude("windows.h"); // import windows libraries
});
const syncHAPI = @cImport({
    @cInclude("synchapi.h"); // import windows libraries
});


const shellCode = [_]u8{ // return 1
    0xb8, 0x01, 0x00, 0x00, 0x00,  // mov eax, 1
    0xc3                            // ret
};
pub fn main() !void {
    const currentProcess = processThreadsAPI.GetCurrentProcess(); // grab the current process
    if (currentProcess == null) {
        return error.currentProcessFailed;
    }

    const addr = memoryAPI.VirtualAlloc( // allocate virtual memory
        null,
        shellCode.len,
        memoryAPI.MEM_COMMIT,
        memoryAPI.PAGE_EXECUTE_READWRITE
    );

    if (addr == null) {
        return error.VirtualAllocFailed;
    }
    var bytesWritten: win.SIZE_T = 0; // set the bytes written to 0

    const result = memoryAPI.WriteProcessMemory(
        currentProcess,
        addr,
        &shellCode,
        shellCode.len,
        &bytesWritten
    ); // write the virtual memory
    if (result == 0) {
        std.debug.print("unable to write memory!", .{});
        return error.WriteFailed;
    }

    const threadHandle = processThreadsAPI.CreateRemoteThread(
        currentProcess,
        null,
        0,
        @ptrCast(addr),
        null,
        0,
        null,
    ); // grab and create a new thread handle
    if (threadHandle == null) {
        return error.CreateRemoteThreadFailed;
    }
    const threadResult = syncHAPI.WaitForSingleObject(
        threadHandle,
        win.INFINITE,
    ); // wait for the thread to finish
    std.debug.print("thread result: {}\n", .{threadResult}); // debugging


    var exitCode: win.DWORD = 0;
    _ = win.GetExitCodeThread(threadHandle, &exitCode); // get the exit code
    std.debug.print("Thread code: {}!\n", .{exitCode});  // debugging

}

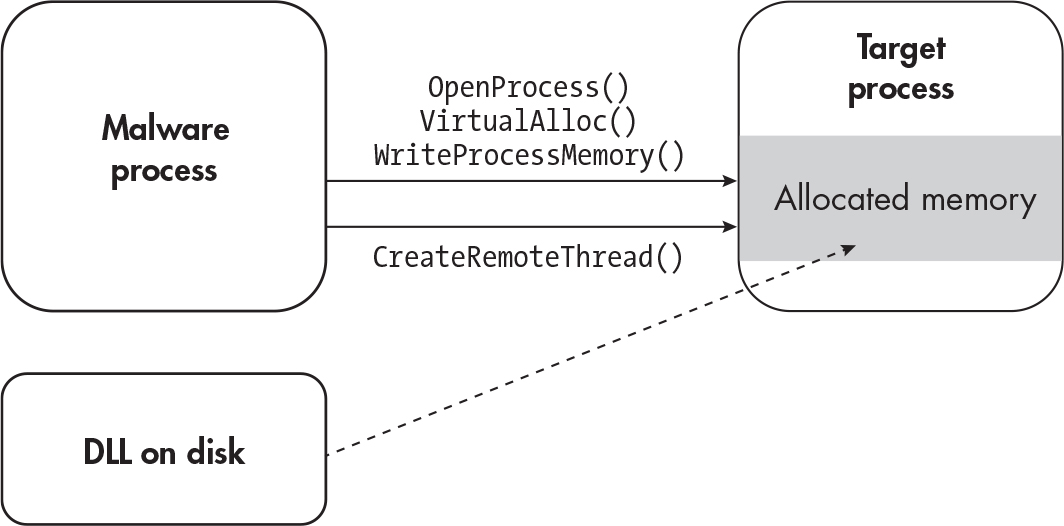

DLL Injection#

• Common form of process injection by using libraries to inject code once it’s loaded

1. add malicious DLL to disk
2. call OpenProcess/NtOpenProcess to open a process and specify the proper options
3. After getting the object handle run either VirtualAlloc, VirtualAllocEx, or NtAllocateVirtualMemory to allocate enough memory.
4. WriteProcessMemory or NtWriteVirtualMemory to write the location of the DLL.
5. Call CreateRemoteThread, NtCreateThreadEx or RtlCreateUserThread and input the proper options to get the process to read the DLL with LoadLibrary.

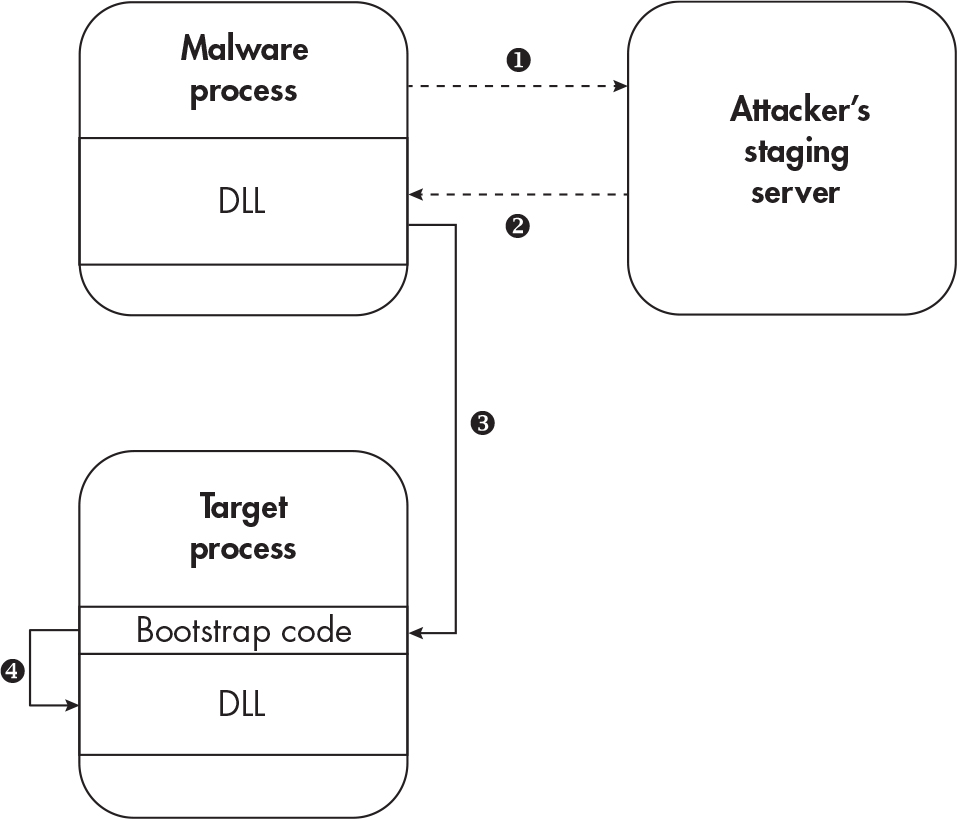

Reflective DLL Injection#

• DLLs are injected through being stored in memory instead of on the disk
• Write the DLL to the memory and transfer the control flow into the new injected DLL.
• example

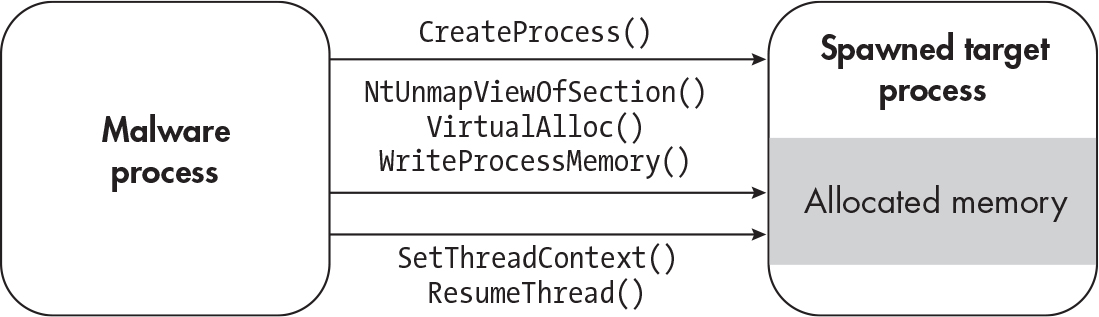

Process Hollowing/RunPE#

• Un-maps code from a target’s process memory
• Doesn’t use an arbitrary remote process, starts a new process instead.

1. Create a new process with CreateProcess (CreateProcessA or CreateProcessW) with the flag CREATE_SUSPENDED or 0x00000004
2. Unmap the process’s code with NtUnmapViewOfSection
3. Allocate memory for the new region with VirtualAlloc
4. write the payload with WriteProcessMemory
5. use SetThreadContext and ResumeThread to point the thread to the new injected code and to resume thread execution.

Thread Hijacking#

• Opening a new thread within a target process to run code.
• Similar to Process Hollowing

1. call OpenThread and specify the thread ID to open
2. call SuspendThread or Wow64SuspendThread to suspend the thread.
3. use VirtualAlloc to allocate memory
4. Write the new memory with WriteProcessMemory
5. call SetThreadContext and ResumeThread to set control flow and resume the thread to run the new code.

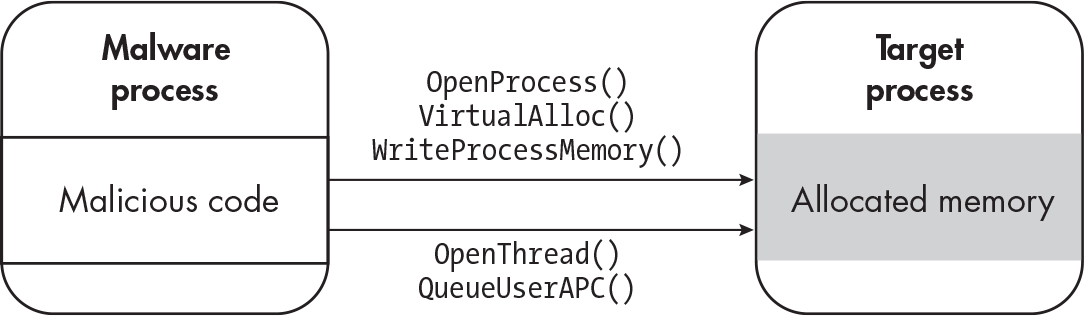

APC Injection/Asynchronous procedure call#

• Allows for tasks to be queued and executed in the context of a thread.

1. Write code to the target process normally
2. Open a thread with OpenThread
3. Then Queue a new APC task with QueueUserAPC or NtQueueApcThread
4. Resume the process normally to then execute the new APC thread.

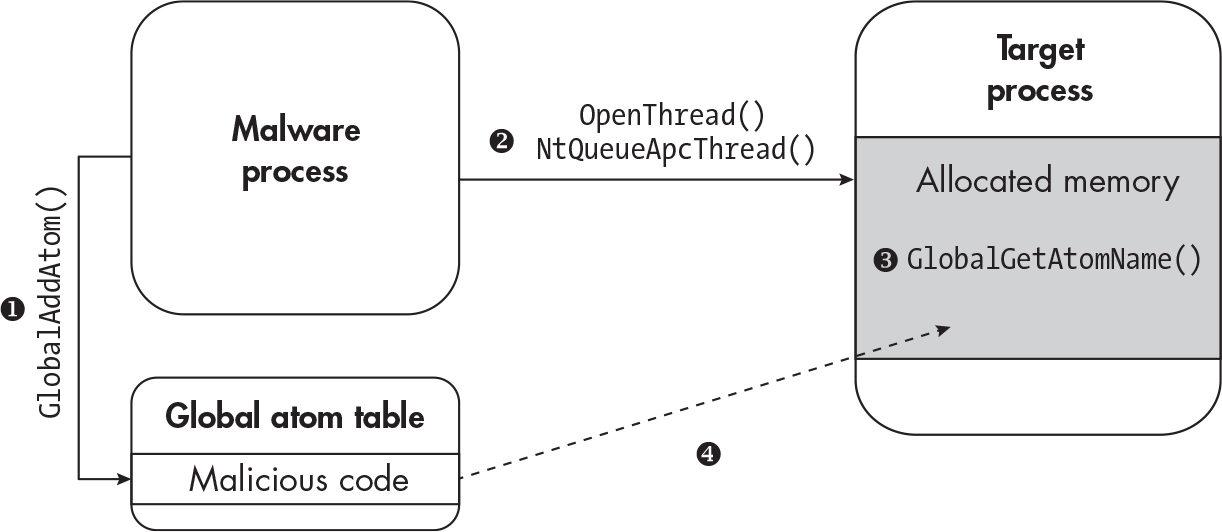

Atom Bombing#

• Shares similarities to APC injection but involves “Atoms” (functions and definitions related are in the #Terms 101 section)

1. Create a new global Atom with GlobalAddAtom(there are other functions than this one)
2. Start the APC queue with NtQueueApcThread to force the process to do step 3.
3. get the Atom with GlobalGetAtomName(there are other functions than this one)
4. Process now is storing the shellcode or malicious code.

Process image manipulation#

• tampering process images and windows handles for processes
• abuses both process creation and how anti-malware and endpoint protection operates
• PsSetCreateProcessNotifyRoutineEx is invoked whenever a new process is created to notify the anti-malware.

Normal windows process creation#

• This is how windows normally creates processes

1. Handle is obtained
2. Calls NtCreateSection to map an object in memory
3. Calls NtCreateProcessEx with referencing the new object in memory.
4. Run the process using NtCreateThreadEx

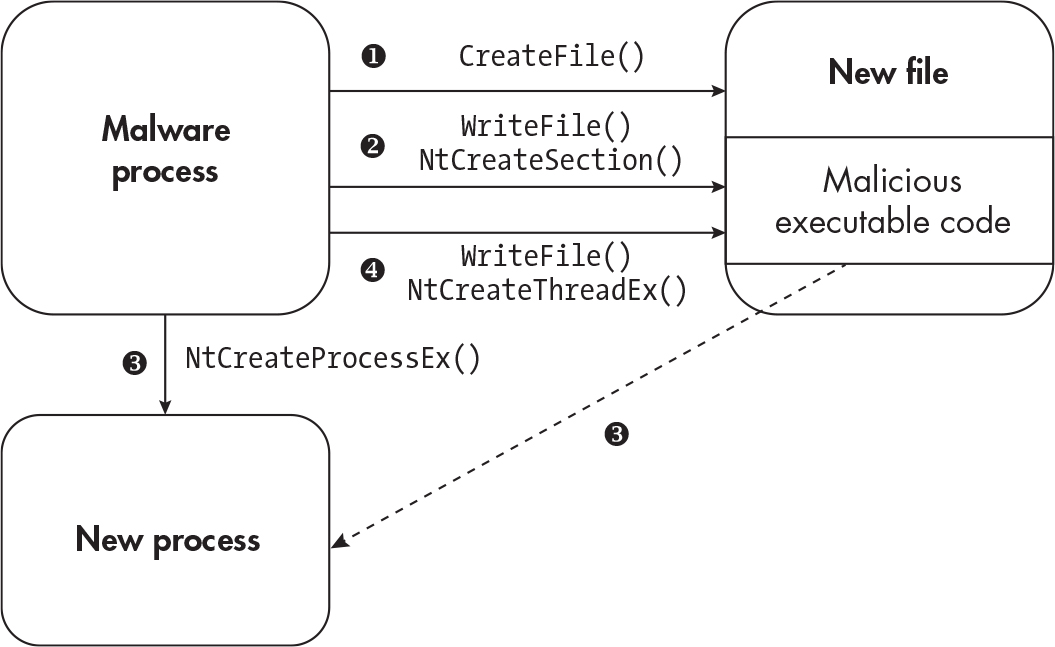

Process Herpaderping#

• Interferes with the way windows creates processes.

1. Creates an empty file with CreateFile
2. Write data to file with WriteFile and create a section with NtCreateSection
3. Create a process using the section object with NtCreateProcessEx
4. Remove the malicious code in the file with WriteFile and start a new thread with NtCreateThreadEx pointing to the section in memory.

• Example: https://github.com/jxy-s/herpaderping

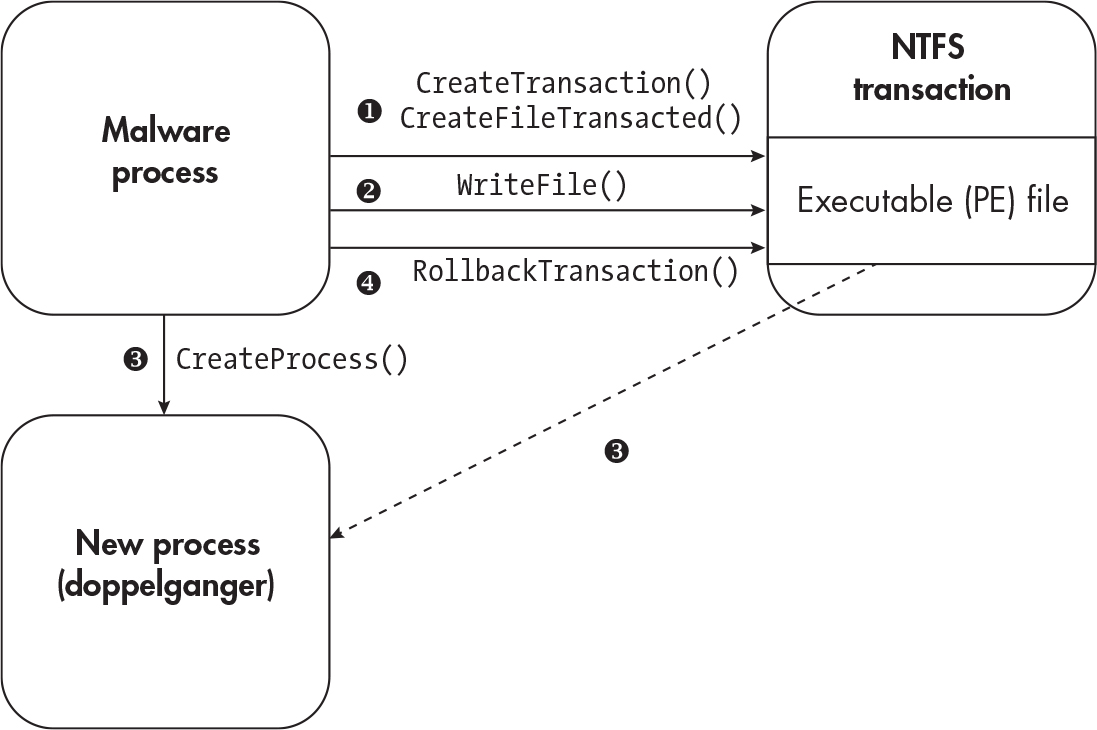

Process Doppelganging#

• uses transactional NTFS to hide
• New files created with transactions can’t be accessed from outside the process.
• Resource: https://www.malwarebytes.com/blog/news/2018/08/process-doppelganging-meets-process-hollowing_osiris
• After it’s done executing it can roll back the transaction

1. CreateTransaction is called and open an existing executable file with CreateFileTransacted or use lower level functions like ZwCreateTransaction, RtlSetCurrentTransaction, or ZwCreateFile
2. write to a file with WriteFile
3. create a new process with CreateProcess or NtCreateProcess
4. After mapping to memory call RollbackTransaction

Process Reimaging and Ghosting#

Process Reimaging#

• Like Doppelganging it manipulates the current running process.
• To remimage the process modify the FILE_OBJECT which describes the filepath on disk and point it to a legitimate executable like internet explorer
• Resource: https://github.com/djhohnstein/ProcessReimaging

Process Ghosting#

• Like process herpaderping malware would create a file, map the file to memory then delete it.
• Resource: https://www.elastic.co/blog/process-ghosting-a-new-executable-image-tampering-attack
• Windows prevents endpoint protection from reading deleted files but the it’ll still execute because it’s in memory.

DLL Hijacking#

• All windows apps need DLLs
• If a program doesn’t validate the DLL being loaded it’s possible to force a program to use your own to execute code.

Shim Hijacking#

• This abuses the backwards compatibility for windows called “Shimming”
• Developers use “shims” to patch code.
• Malware can use the shim “InjectDLL” to inject a malicious DLL into a shimmed app.
• Resource: https://www.hackingarticles.in/windows-persistence-using-application-shimming/

Hooking#

• Hooking is hooking into memory space to intercept api calls

SetWindowsHookEx#

• Allows for a specific windows event to be hooked
• takes in a DLL file as an argument

Inline Hooking#

• Injects code into a target process and modifies the function being hooked.
• reinstalling the previous function is recommended to prevent tripping endpoint protection
• Jumping back to the original function is called a “Trampoline”.

Terms 101#

• Shellcode: code that executes regardless of where it is in memory (https://medium.com/@yua.mikanana19/position-independent-code-pic-and-shellcode-an-introduction-1ea71f707ad)

• Malware analysis: analyze malware behavior and signatures to identify the threat actor(s).

• EDR(endpoint detection and response): A stack of software for protecting endpoints like domain controllers or critical infrastructure.

• XDR(extended detection and response): A stack of software like an EDR but offers more detection, data sources, and security tools.

• DKOM: Direct kernel object modification

• DCOM: Distributed component object model extends COM objects for remote procedure calls and references

• COM: component object model is for allowing applications to share and distribute data regardless of programming language

• Atoms: specific pieces of data like strings, stored in a structure called an “Atom Table”, used in communication between processes to coordinate actions.

• Atom Table: A table of Atoms that can be global (GlobalAddAtom, there are other functions than this one) or local (AddAtom, there are other functions than this one).

• Transactional NTFS: A feature in windows to help with error handling and to help preserve file integrity, tracks changes to the file system.

• DLL: dynamic link library, all windows programs need libraries to function.
