Kube PI4
Background
This started as an “I’m bored” kind of project and ended up turning into something somewhat decent security-wise by getting information like alerts, security posture, and vulnerabilities in your Kubernetes cluster.
Requirements.txt
- A Raspberry Pi 4 or better
- A decent-sized USB or drive you can connect over USB (I used 1TB, but you can get away with like 500GB)
- A static IP for your PI
The Beginning
To start I went with an OS that’s not as minimal as something like Raspbian Lite and chose Ubuntu Server 2026 for as close to bleeding edge as possible and the least hacky as possible OS. The Downsides of it are that it’s a bit heavier on resources, but that’s ok since you’re not running any super-demanding charts like Prometheus.
- Install K3S https://k3s.io/
- Install Helm https://helm.sh/docs/intro/install/
Pretty easy so far yeah?
Installing Charts
Now that you installed the essentials, you’re going to install headlamp and add a plugin.
Follow the in-cluster installation for headlamp: https://headlamp.dev/#download-platforms
Add an ingress and middleware:
yamlkind: Ingress apiVersion: networking.k8s.io/v1 metadata: name: headlamp namespace: kube-system annotations: traefik.ingress.kubernetes.io/router.middlewares: kube-system-headlamp-auth@kubernetescrd spec: ingressClassName: traefik tls: secretName: headlamp hosts: - raspberrypi.local # change with your preferred hostname rules: host: raspberrypi.local # change with your preferred hostname http: paths: - path: / pathType: ImplementationSpecific backend: service: name: my-headlamp port: number: 80 # for creating the tls secret do something like: `kubectl create secret tls my-app-certs --cert=path/to/domain.crt --key=path/to/domain.key --namespace=default` make sure your namespace is kube-system kind: Middleware apiVersion: traefik.io/v1alpha1 metadata: name: headlamp-auth namespace: kube-system spec: basicAuth: secret: headlamp-auth-secret kind: Secret apiVersion: v1 metadata: name: headlamp-auth-secret namespace: kube-system type: Opaque stringData: users: | pi:$2y$05$Q/XB.g6vYzkCy8iTXfISSenWaOtS5J4BDJMi01r7.CN6ZsoFUiL/C # raspberry as the password (can be changed referencing this: https://stackoverflow.com/questions/62116895/traefik-basic-auth )Create a new cluster token for authenticating to headlamp
kubectl create token headlamp-admin -n kube-systemLog in to the ui at https://raspberrypi.local or the hostname you put in the ingress
Now, you should be getting cluster metrics and data like running pods! To add the kubescape plugin, use this values.yaml file and upgrade your headlamp chart (you might need to issue a new cluster token and log back into your headlamp instance):
yaml
config:
pluginsDir: /build/plugins
initContainers:
- command:
- /bin/sh
- '-c'
- mkdir -p /build/plugins && cp -r /plugins/* /build/plugins/
image: quay.io/kubescape/headlamp-plugin:v0.11.2
name: kubescape-plugin
volumeMounts:
- mountPath: /build/plugins
name: headlamp-plugins- Follow these docs for installing kubescape: https://kubescape.io/docs/install-operator/#prerequisites Now you have scanning in your cluster :smile:
- If you wish to install the CLI too, follow the documentation here: https://kubescape.io/docs/install-cli
Nice, now you have a way to see your security posture, and kubescape gives recommendations on how to fix your posture too!
This is where it’ll get hellish and a bit difficult but it won’t be too hard since I’ve already done it and can just give you the manifest files.
This Is Where The Fun Begins!
- Lets get kubearmor for runtime security now by following: https://docs.kubearmor.io/kubearmor/quick-links/deployment_guide No need to apply the test policy because we’re going to be bringing our own from:
https://github.com/kubearmor/policy-templatesI applied all of the CVE policies. - Install the CLI if you want: from: https://docs.kubearmor.io/kubearmor/quick-links/deployment_guide
Kubearmor done!!
Time to get Tetragon going too for security observability and more generic runtime enforcement
- Follow the docs here for easy installation: https://tetragon.io/
- Done! It’s that easy!
Now you have the most secure cluster in the world!! (Not really, but close enough on a trashy pi)
If you really wanna make it super l33t 1337 add alerting to discord!
Install fluent bit with this values.yaml file, make sure to install it into the logging namespace:
yamlserviceAccount: create: true name: fluent-bit rbac: create: true nodeAccess: true eventsAccess: true clusterRole: create: true rules: - apiGroups: [""] resources: ["events", "pods", "namespaces", "nodes"] verbs: ["get", "list", "watch"] config: service: | [SERVICE] Flush 1 Log_Level info Parsers_File parsers.conf Parsers_File tetragon.conf HTTP_Server On HTTP_Listen 0.0.0.0 HTTP_Port 2020 extraFiles: tetragon.conf: | [PARSER] Name tetragon_json Format json Time_Key time Time_Format %Y-%m-%dT%H:%M:%S.%LZ Time_Keep On inputs: | [INPUT] Name tail Path /var/log/kubearmor.log Tag kubearmor Mem_Buf_Limit 10MB Skip_Long_Lines On [INPUT] Name tail Path /var/run/cilium/tetragon/*.log Tag tetragon Parser tetragon_json Mem_Buf_Limit 10MB Skip_Long_Lines On Refresh_Interval 5 [INPUT] Name tail Path /var/log/pods/kubescape_kubescape-*/kubescape/*.log Tag kubescape Mem_Buf_Limit 10MB Skip_Long_Lines On [INPUT] Name tail Path /var/log/pods/kubescape_node-agent-*/node-agent/*.log Tag kubescape.node-agent Mem_Buf_Limit 10MB Skip_Long_Lines On [INPUT] Name tail Path /var/log/pods/kubescape_operator-*/operator/*.log Tag kubescape.operator Mem_Buf_Limit 10MB Skip_Long_Lines On [INPUT] Name kubernetes_events Tag k8s.events filters: | [FILTER] Name grep Match kubearmor Regex log (DENY|BLOCK) [FILTER] Name record_modifier Match tetragon Record has_tetragon_event true [FILTER] Name grep Match tetragon Exclude kubernetes.namespace_name ^kubearmor.* [FILTER] Name grep Match tetragon Exclude kubernetes.namespace ^kubearmor.* [FILTER] Name grep Match tetragon Exclude kubernetes.pod_name ^.*kubearmor.*$ [FILTER] Name grep Match tetragon Exclude namespace kubearmor [FILTER] Name grep Match kubescape* Regex log (HIGH|CRITICAL|FAILED|alert|unexpected|anomaly|malware) [FILTER] Name grep Match k8s.events Regex log (Failed|Forbidden|Error|BackOff) [FILTER] Name throttle Match * Rate 5 Window 30 Print_Status false Interval 1s [FILTER] Name lua Match * call enrich code function enrich(tag, timestamp, record) record["source"] = tag return 1, timestamp, record end [FILTER] Name modify Match * Add cluster raspberrypi-security outputs: | [OUTPUT] Name http Match * Host discord-proxy.logging.svc.cluster.local Port 8080 URI / Format json_lines json_date_key false tls Off Retry_Limit 3 daemonSetVolumes: - name: varlog hostPath: path: /var/log - name: tetragon hostPath: path: /var/run/cilium/tetragon daemonSetVolumeMounts: - name: varlog mountPath: /var/log - name: tetragon mountPath: /var/run/cilium/tetragonYou will get some crash loopbacks because the Discord proxy hasn’t been set up yet. Use this manifest to do it, remember to replace the env variable value for
DISCORD_WEBHOOKwith your webhook (yes, I did completely vibe code the proxy btw):yamlapiVersion: v1 kind: ConfigMap metadata: name: discord-proxy namespace: logging data: server.js: | const http = require('http'); const https = require('https'); const WEBHOOK = process.env.DISCORD_WEBHOOK; // ------------------------------ // Discord sender // ------------------------------ function sendDiscord(username, content) { return new Promise((resolve, reject) => { if (content.length > 2000) content = content.slice(0, 1997) + '...'; const body = JSON.stringify({ username, avatar_url: 'https://i.kym-cdn.com/photos/images/newsfeed/003/132/154/b1b.jpg', content }); const url = new URL(WEBHOOK); const req = https.request({ hostname: url.hostname, path: url.pathname, method: 'POST', headers: { 'Content-Type': 'application/json', 'Content-Length': Buffer.byteLength(body) } }, res => { res.resume(); resolve(); }); req.on('error', reject); req.write(body); req.end(); }); } // ------------------------------ // Helpers // ------------------------------ function safeJson(obj) { try { return JSON.stringify(obj, null, 2); } catch { return String(obj); } } function extractKubescapeAlert(record) { const f = record?.failure?.BaseRuntimeAlert; const proc = f?.identifiers?.process || {}; const k8s = record?.failure?.RuntimeAlertK8sDetails || {}; return { rule: record?.failure?.RuleAlert?.ruleDescription || 'Kubescape alert', alert: f?.alertName, severity: f?.severity, process: `${proc.name || 'unknown'} ${proc.commandLine || ''}`.trim(), namespace: k8s.namespace, pod: k8s.podName, node: k8s.nodeName, image: k8s.image }; } function extractTetragon(record) { const p = record?.process_exec?.process || record?.process_exit?.process; if (!p) return null; return { event: record.process_exec ? 'exec' : 'exit', binary: p.binary, args: p.arguments || '', pid: p.pid, pod: p.pod?.name, namespace: p.pod?.namespace || record.namespace }; } // ------------------------------ // Server // ------------------------------ http.createServer((req, res) => { if (req.method !== 'POST') { res.writeHead(405); return res.end(); } let body = ''; req.on('data', d => body += d); req.on('end', async () => { let parsedBody; try { parsedBody = JSON.parse(body); } catch { parsedBody = null; } // ------------------------------ // FAST PATH: direct forward based on username/content // ------------------------------ if ( parsedBody?.username === "Kubescape Scanner" && typeof parsedBody?.content === "string" ) { await sendDiscord(parsedBody.username, parsedBody.content); res.writeHead(204); return res.end(); } const lines = body.trim().split('\n'); for (const line of lines) { if (!line) continue; try { const record = JSON.parse(line); const cluster = record.cluster || 'unknown'; const source = record.source || record.tag || 'unknown'; // Global namespace exclusion const namespace = record?.failure?.RuntimeAlertK8sDetails?.namespace || record?.process_exec?.process?.pod?.namespace || record?.process_exit?.process?.pod?.namespace || record?.kubernetes?.namespace_name || record?.namespace; if (namespace === 'kubescape') { continue; } // -------------------------- // Kubescape alert handling // -------------------------- if (record?.failure?.BaseRuntimeAlert) { const a = extractKubescapeAlert(record); const content = `🚨 **Kubescape Alert** Cluster: \`${cluster}\` Rule: ${a.rule} Alert: ${a.alert} Severity: ${a.severity} Process: \`${a.process}\` Pod: \`${a.pod}\` Namespace: \`${a.namespace}\` Node: \`${a.node}\``; await sendDiscord('Kubescape', content); continue; } // -------------------------- // Tetragon handling (STRICT FILTER) // -------------------------- if ( source === "tetragon" && (record.process_exec || record.process_exit) ) { const ns = record?.process_exec?.process?.pod?.namespace || record?.process_exit?.process?.pod?.namespace || record?.namespace; // HARD GATE: only allowed namespaces if (!ns || !["default", "kube-prod"].includes(ns)) { continue; } const t = extractTetragon(record); if (t) { const content = `🧬 **Tetragon Event** Cluster: \`${cluster}\` Event: \`${t.event}\` Binary: \`${t.binary}\` Args: \`${t.args}\` Pod: \`${t.pod || 'host'}\` Namespace: \`${t.namespace || 'host'}\``; await sendDiscord('Tetragon', content); continue; } } // -------------------------- // Fallback // -------------------------- const pretty = safeJson(record); const content = `**[${cluster}] ${source}** \`\`\`json ${pretty} \`\`\``; await sendDiscord('Security Logs', content); } catch (e) { console.error('parse error', e, line); } } res.writeHead(204); res.end(); }); }).listen(8080, () => console.log('discord proxy listening on 8080')); --- apiVersion: apps/v1 kind: Deployment metadata: name: discord-proxy namespace: logging spec: replicas: 1 selector: matchLabels: app: discord-proxy template: metadata: labels: app: discord-proxy spec: containers: - name: proxy image: node:20-alpine command: ["node", "/app/server.js"] env: - name: DISCORD_WEBHOOK value: "https://discord.com/api/webhooks/yourwebhookhere!" volumeMounts: - name: proxy-script mountPath: /app volumes: - name: proxy-script configMap: name: discord-proxy --- apiVersion: v1 kind: Service metadata: name: discord-proxy namespace: logging spec: selector: app: discord-proxy ports: - port: 8080 targetPort: 8080For the kubescape reporter, it’ll run a basic scan for compliance and CVEs; it will not scan your images for vulns without it being specified (this was also vibe coded), scans will run at 8am every day automatically:
yamlapiVersion: v1 kind: ConfigMap metadata: name: kubescape-reporter-script namespace: kubescape data: scan-and-send.js: | const { execSync } = require('child_process'); const http = require('http'); const fs = require('fs'); const zlib = require('node:zlib'); const { promisify } = require('node:util'); const brotliCompress = promisify(zlib.brotliCompress); async function shrinkString(hugeString) { const inputBuffer = Buffer.from(hugeString, 'utf8'); const compressedBuffer = await brotliCompress(inputBuffer, { params: { [zlib.constants.BROTLI_PARAM_MODE]: zlib.constants.BROTLI_MODE_TEXT, [zlib.constants.BROTLI_PARAM_QUALITY]: 11, [zlib.constants.BROTLI_PARAM_LGWIN]: 24 } }); return compressedBuffer.toString('base64url'); } function sendToProxy(username, content) { return new Promise((resolve, reject) => { const payload = JSON.stringify({ username, content }); const req = http.request( { hostname: 'discord-proxy.logging.svc.cluster.local', port: 8080, path: '/', method: 'POST', headers: { 'Content-Type': 'application/json', 'Content-Length': Buffer.byteLength(payload) } }, res => { res.resume(); resolve(); } ); req.on('error', reject); req.write(payload); req.end(); }); } async function main() { try { console.log('📥 Installing Kubescape...'); execSync( 'curl -s https://raw.githubusercontent.com/kubescape/kubescape/master/install.sh | /bin/bash', { stdio: 'inherit' } ); const kubescapePath = '/usr/local/bin/kubescape'; if (!fs.existsSync(kubescapePath)) { throw new Error( 'Kubescape binary not found after install.' ); } console.log('🔄 Running Kubescape scan...'); try { execSync( `${kubescapePath} scan --format json --output /tmp/results.json`, { stdio: 'inherit', timeout: 300_000 } ); } catch (err) { console.warn( '⚠️ Full scan failed, retrying with --include-namespaces all...' ); execSync( `${kubescapePath} scan --include-namespaces all --format json --output /tmp/results.json`, { stdio: 'inherit', timeout: 300_000 } ); } if (!fs.existsSync('/tmp/results.json')) { throw new Error('Scan output file not found.'); } const rawData = fs.readFileSync( '/tmp/results.json', 'utf8' ); const report = JSON.parse(rawData); const vulnerabilities = report.summaryDetails?.vulnerabilities || {}; const cves = vulnerabilities.CVEs || []; const cveSeveritySummary = vulnerabilities.mapsSeverityToSummary || {}; const criticalCVEs = cveSeveritySummary.Critical || 0; const highCVEs = cveSeveritySummary.High || 0; const mediumCVEs = cveSeveritySummary.Medium || 0; const lowCVEs = cveSeveritySummary.Low || 0; const topCVEs = cves.sort((a, b) => { const sev = { Critical: 4, High: 3, Medium: 2, Low: 1 }; return ( (sev[b.severity] || 0) - (sev[a.severity] || 0) ); }).slice(0, 10); const summary = report.summaryDetails || {}; const controls = summary.controls || {}; const frameworks = summary.frameworks || []; const severityCounters = summary.controlsSeverityCounters || {}; const critical = severityCounters.criticalSeverity || 0; const high = severityCounters.highSeverity || 0; const medium = severityCounters.mediumSeverity || 0; const low = severityCounters.lowSeverity || 0; const failedFrameworks = frameworks .filter(f => f.status === 'failed') .map(f => ({ name: f.name, score: f.complianceScore, failed: f.ResourceCounters?.failedResources || 0 })); const failedControls = Object.values( controls ) .filter(c => c.status === 'failed') .map(c => ({ id: c.controlID, name: c.name, severity: c.severity, failedResources: c.ResourceCounters?.failedResources || 0, complianceScore: c.complianceScore })); const severityBreakdown = { Critical: 0, High: 0, Medium: 0, Low: 0 }; for (const control of failedControls) { if ( Object.prototype.hasOwnProperty.call( severityBreakdown, control.severity ) ) { severityBreakdown[control.severity]++; } } const topControls = [...failedControls] .sort( (a, b) => b.failedResources - a.failedResources ) .slice(0, 10); const compressedReport = await shrinkString(rawData); let emoji = '🟢'; if (critical > 0) { emoji = '🔴'; } else if (high > 0) { emoji = '🟠'; } else if (medium > 0) { emoji = '🟡'; } const frameworkSummary = failedFrameworks.length > 0 ? failedFrameworks .map( f => `• ${f.name}: ${f.failed} failed resources (${f.score.toFixed( 1 )}% compliant)` ) .join('\n') : 'None'; const findingsSummary = topControls.length > 0 ? topControls .map( c => `• [${c.severity}] ${c.name} (${c.failedResources} resources)` ) .join('\n') : 'None'; const message = [ `${emoji} **Kubescape Security Report**`, `Scan Date: ${new Date().toISOString()}`, '', '**Framework Failures**', frameworkSummary, '', '**Control Findings**', `• Critical: ${severityBreakdown.Critical}`, `• High: ${severityBreakdown.High}`, `• Medium: ${severityBreakdown.Medium}`, `• Low: ${severityBreakdown.Low}`, '', '**Top Failed Controls**', findingsSummary, '', '**CVE Findings**', `• Critical: ${criticalCVEs}`, `• High: ${highCVEs}`, `• Medium: ${mediumCVEs}`, `• Low: ${lowCVEs}`, ].join('\n'); if (topCVEs.length > 0) { messageParts.push( '', '**Top CVEs**', ...topCVEs.map( cve => `• ${cve.name || cve.cveID || cve.id} [${cve.severity}]` ) ); } console.log(message); console.log( '📤 Sending summary to Discord proxy...' ); await sendToProxy( 'Kubescape Scanner', message ); console.log('✅ Done.'); } catch (err) { console.error('❌ Fatal error:', err); process.exit(1); } } main(); --- apiVersion: v1 kind: ServiceAccount metadata: name: kubescape-reporter namespace: kubescape --- apiVersion: rbac.authorization.k8s.io/v1 kind: ClusterRoleBinding metadata: name: kubescape-reporter-admin-binding roleRef: apiGroup: rbac.authorization.k8s.io kind: ClusterRole name: cluster-admin subjects: - kind: ServiceAccount name: kubescape-reporter namespace: kubescape --- apiVersion: batch/v1 kind: CronJob metadata: name: kubescape-discord-reporter namespace: kubescape spec: schedule: "0 8 * * *" jobTemplate: spec: template: spec: serviceAccountName: kubescape-reporter restartPolicy: Never containers: - name: real-scanner # Using the full-fat bookworm image to ensure curl and bash are pre-installed image: node:20-bookworm command: ["node", "/scripts/scan-and-send.js"] volumeMounts: - name: script mountPath: /scripts volumes: - name: script configMap: name: kubescape-reporter-script

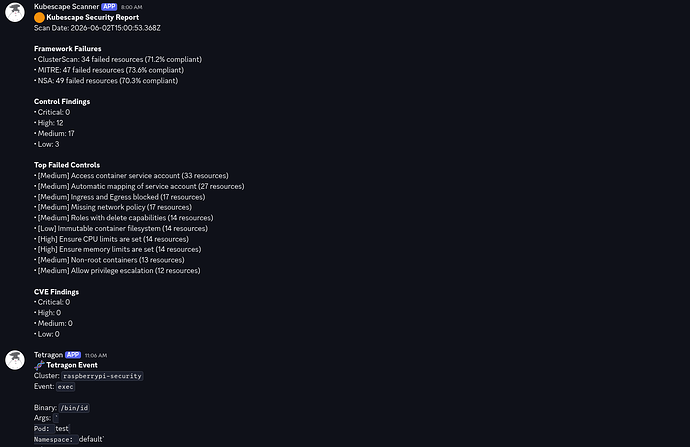

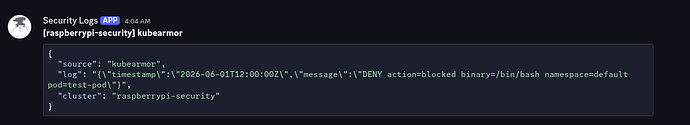

alerts should look like this:
and
Have fun!
